L476 7-string

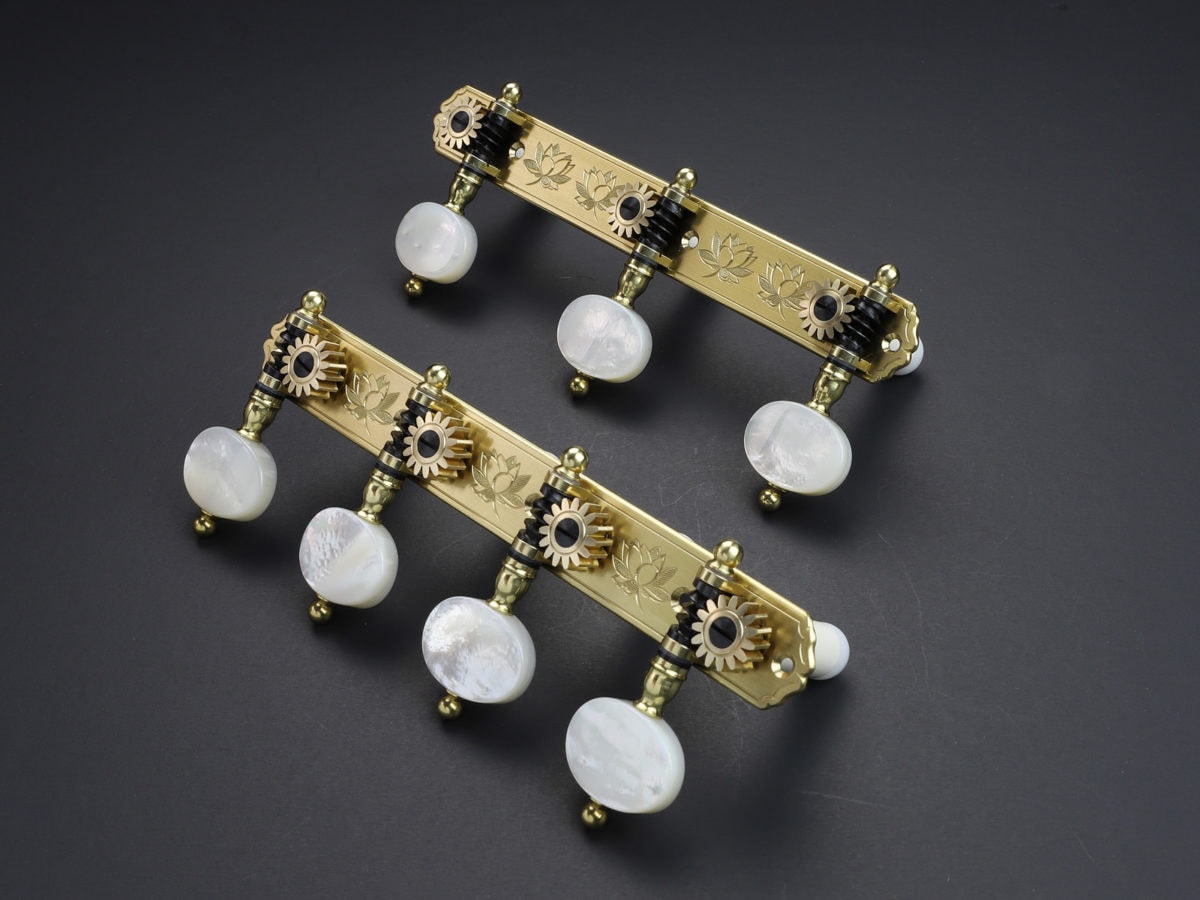

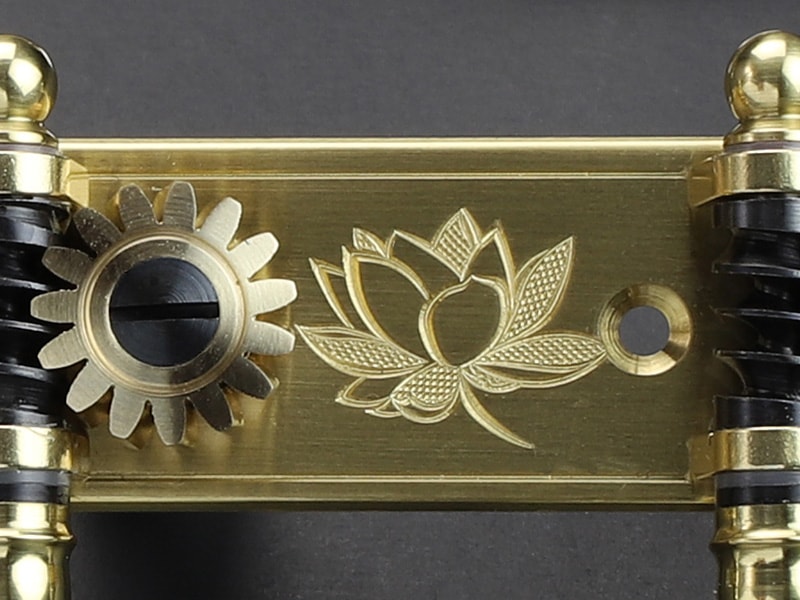

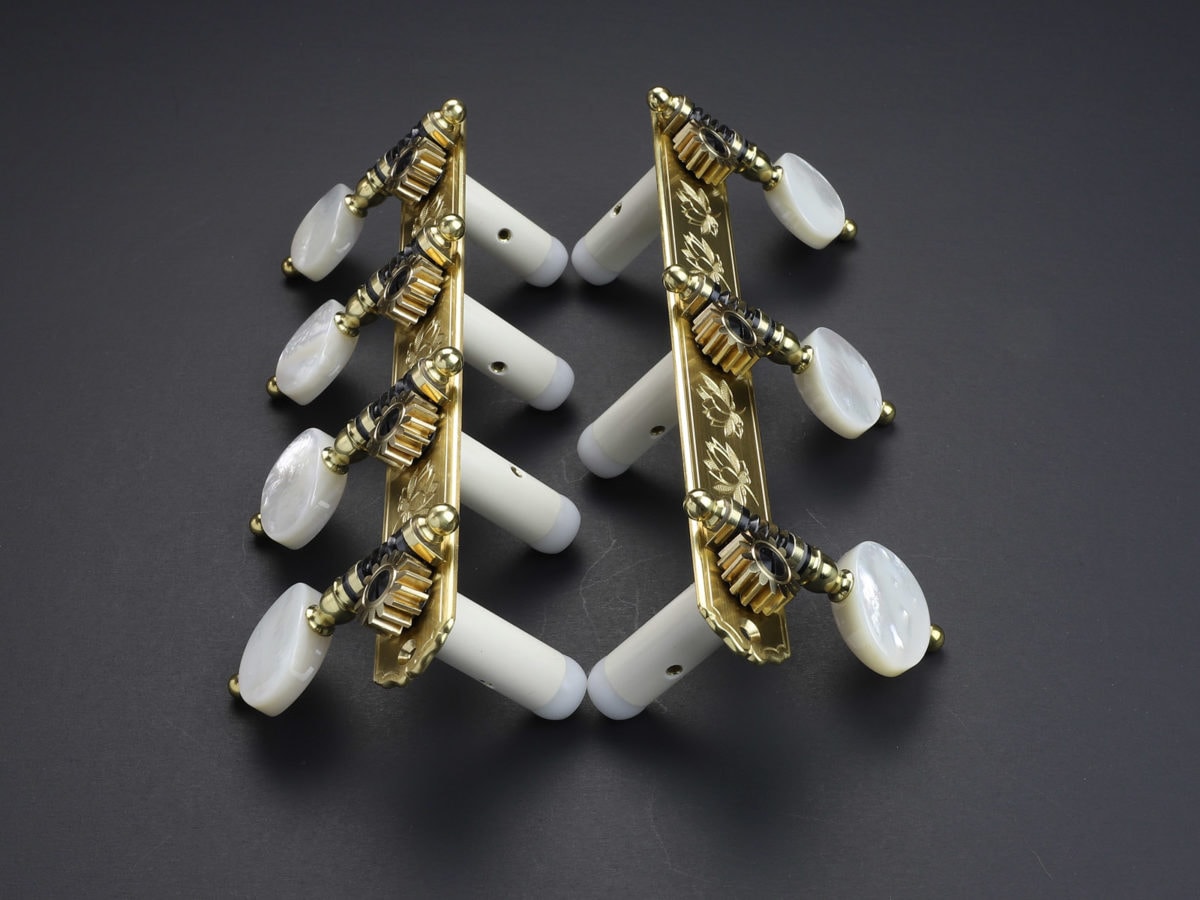

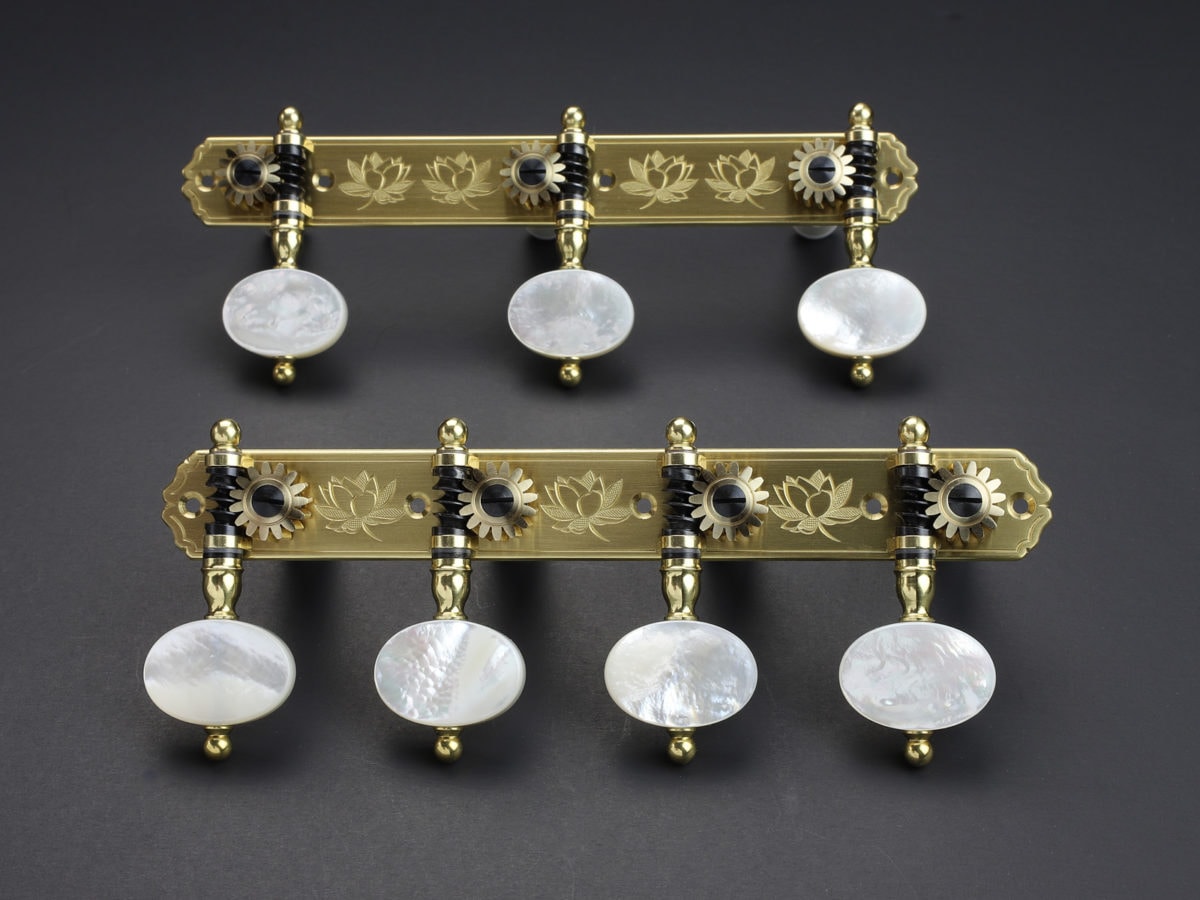

The L476 Lotus flower engraved design is shown on a Rodgers Style 7-string set.  The two plates have the same overall length and end mechanisms positions with the centre mechanisms spaced evenly (bass @ 35mm).   Fitted with Oval Pattern Real Light Mother-of-pearl buttons and Cream Rollers with bearing bushes.  This set can be made for guitars or ukuleles.

All the details for this set can be altered in the options below.

$0.00

    Options

    To alter the specification for this set, please change the section listed below.




    Custom Dimensions

    A:

    B:

    C:

    D:

    E:

    F:

    G:

    H:

    W:

    Note: Colour for the 'Button Shaft' parts can be selected in 'Extra Options' below.


    I will send you information for wood sizes once I receive your order.


    Lacote Rollers: 25mm Long : 12mm String hole

    Standard Size: Headstock thickness: 15.9mm String hole: 23.6mm  Headstock holes: 10mm  (select 'advanced' to change).

    Add extra String Roller details here.


    Number of String Rollers

    Do not change for 6 string guitar.
    Ukulele 4 string (Base -1  Treble -1)
    8 string guitar (Bass +1  Treble +1)




    Add any other notes or questions needed here.

Description

Photographed with the following specifications:

Style of Tuner
Rodgers Style
For a 7 string instrument

Side-plates
Material: Brass
Dimensions: 35mm (& 52.5mm) spacing by 137mm overall length

Buttons
Oval Pattern Real Light Mother-of-pearl

String Rollers
Cream coloured rollers for a classical guitar
Fitted with Self-aligning Bearing Bushes
